Products

Parts & Accessories

Accessories

JUMBO

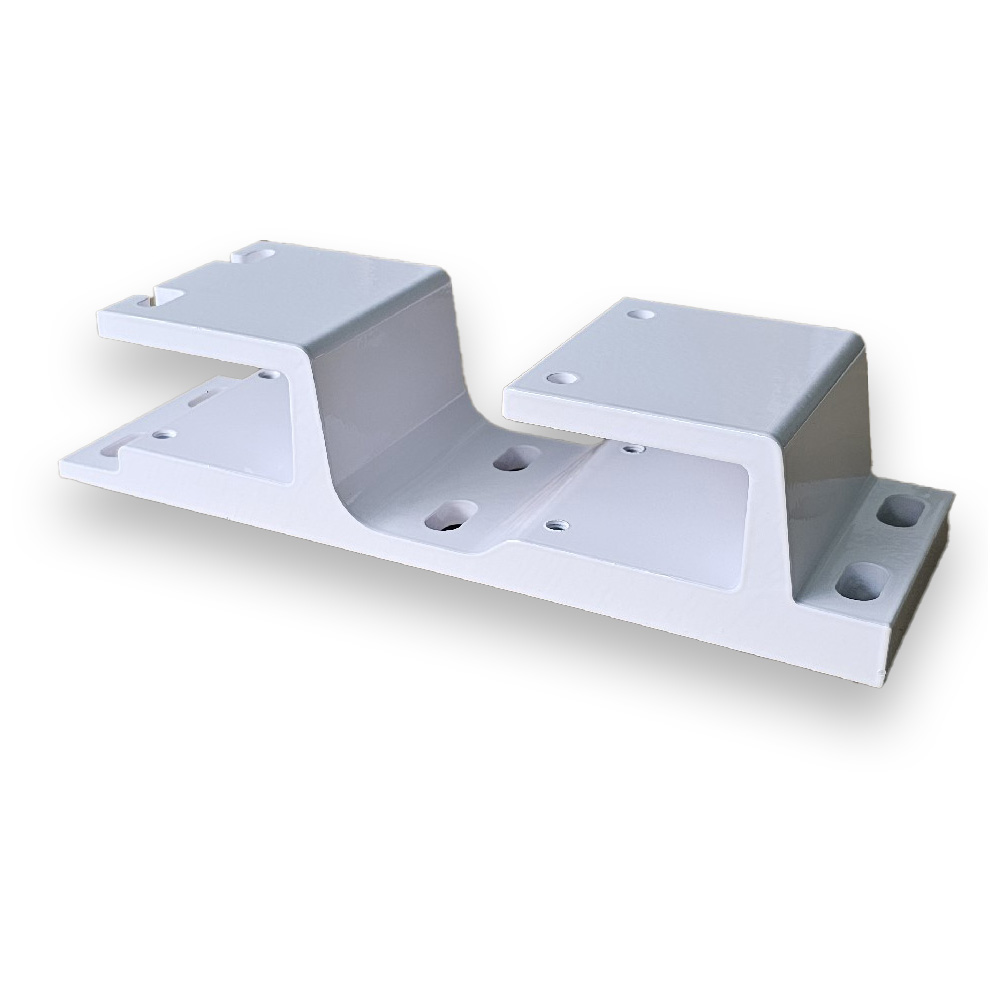

Wall Bracket Jumbo

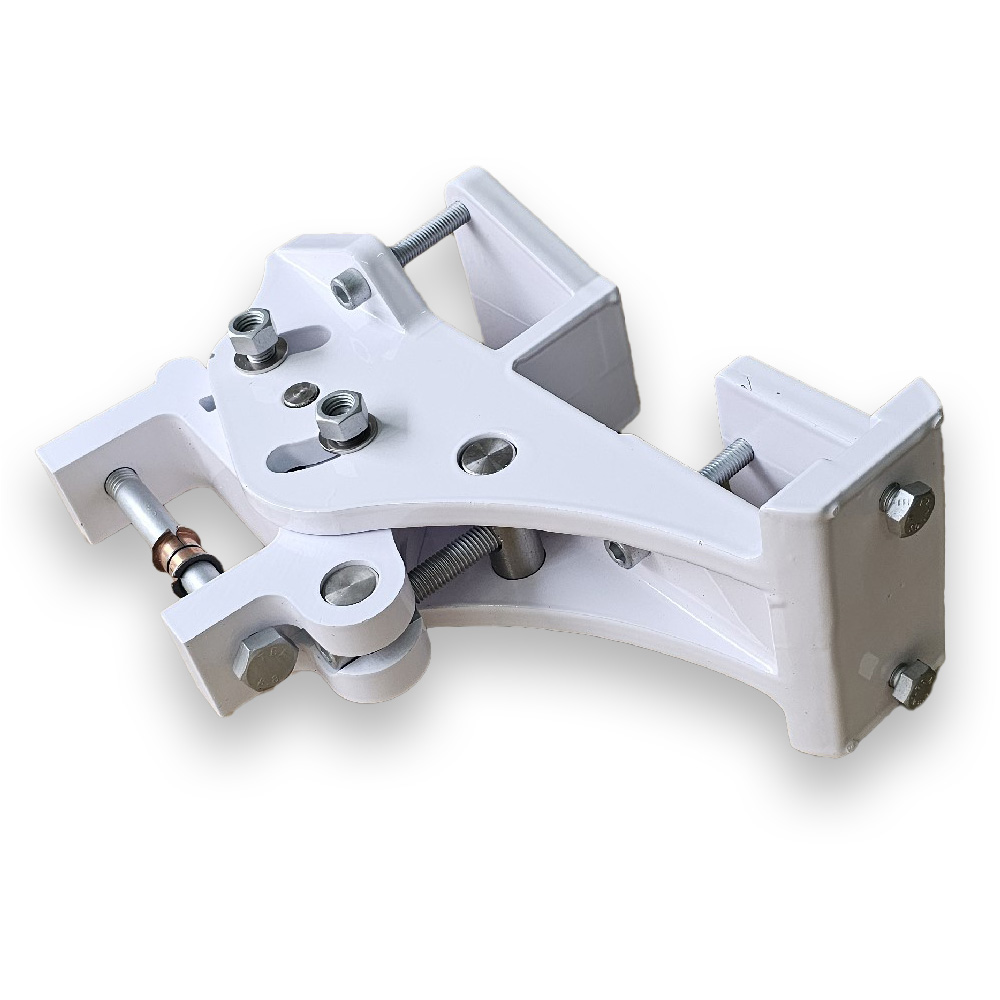

Arm Bracket Jumbo 2

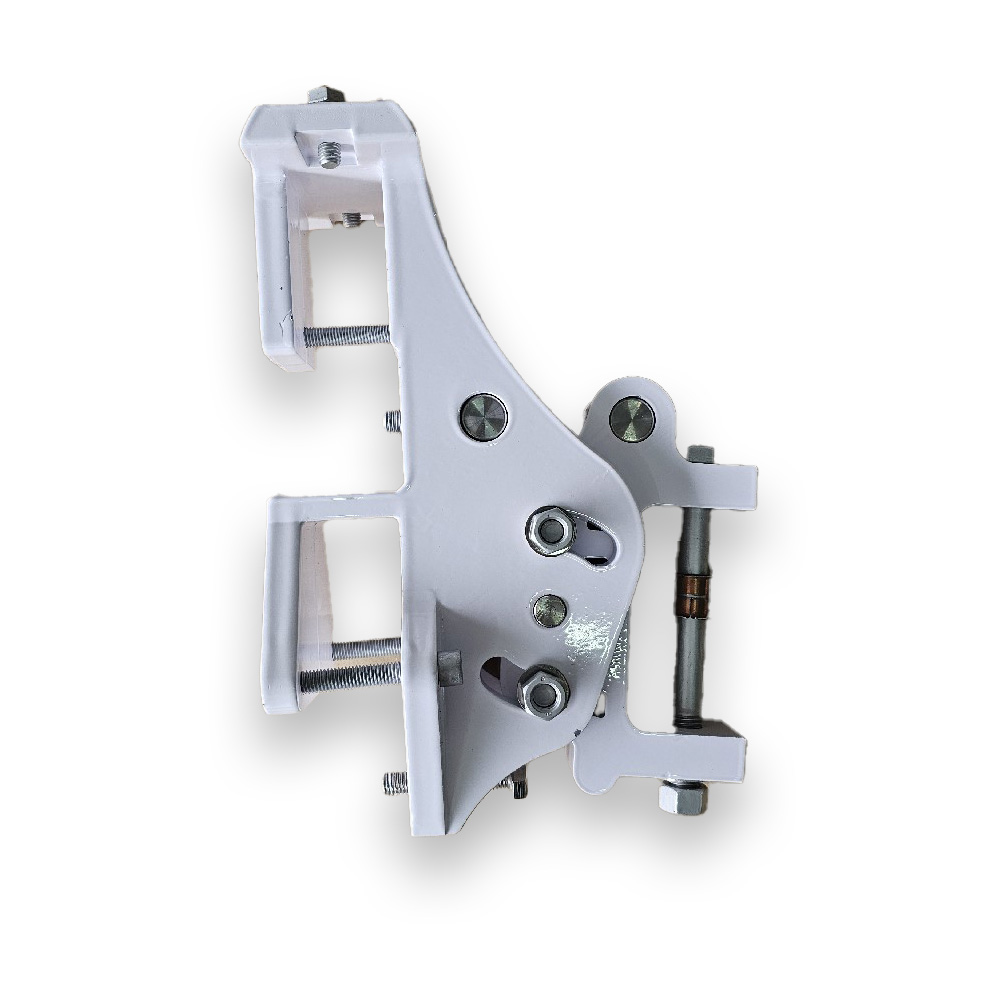

Arm Bracket Jumbo

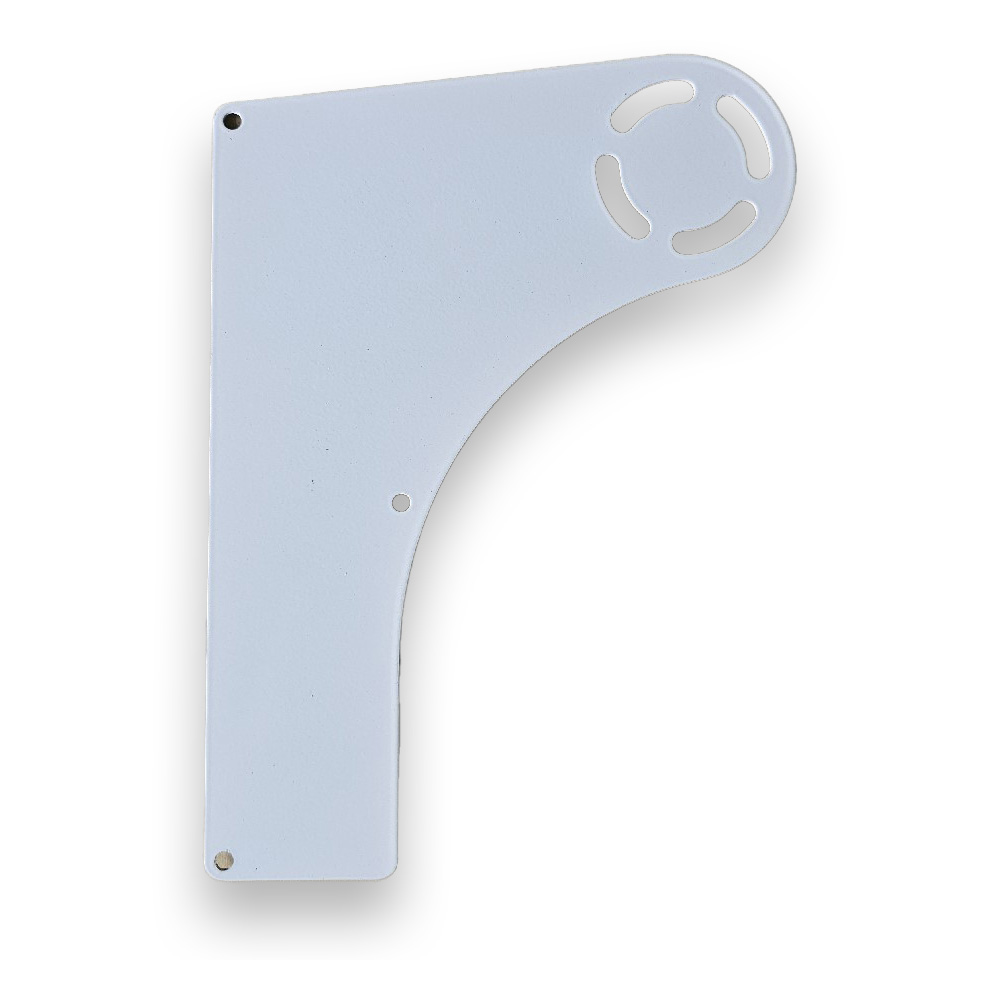

Side Bracket Jumbo endcap

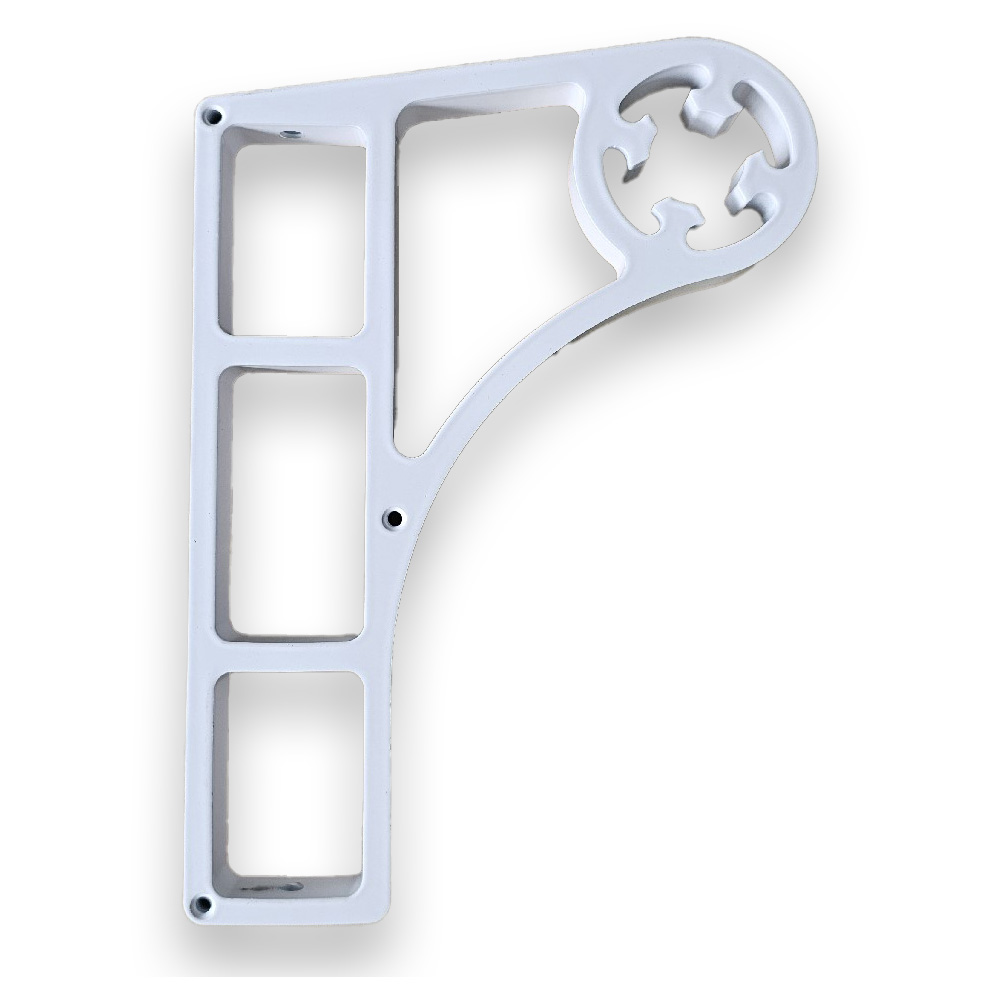

Side Bracket Jumbo
Accessories

SD

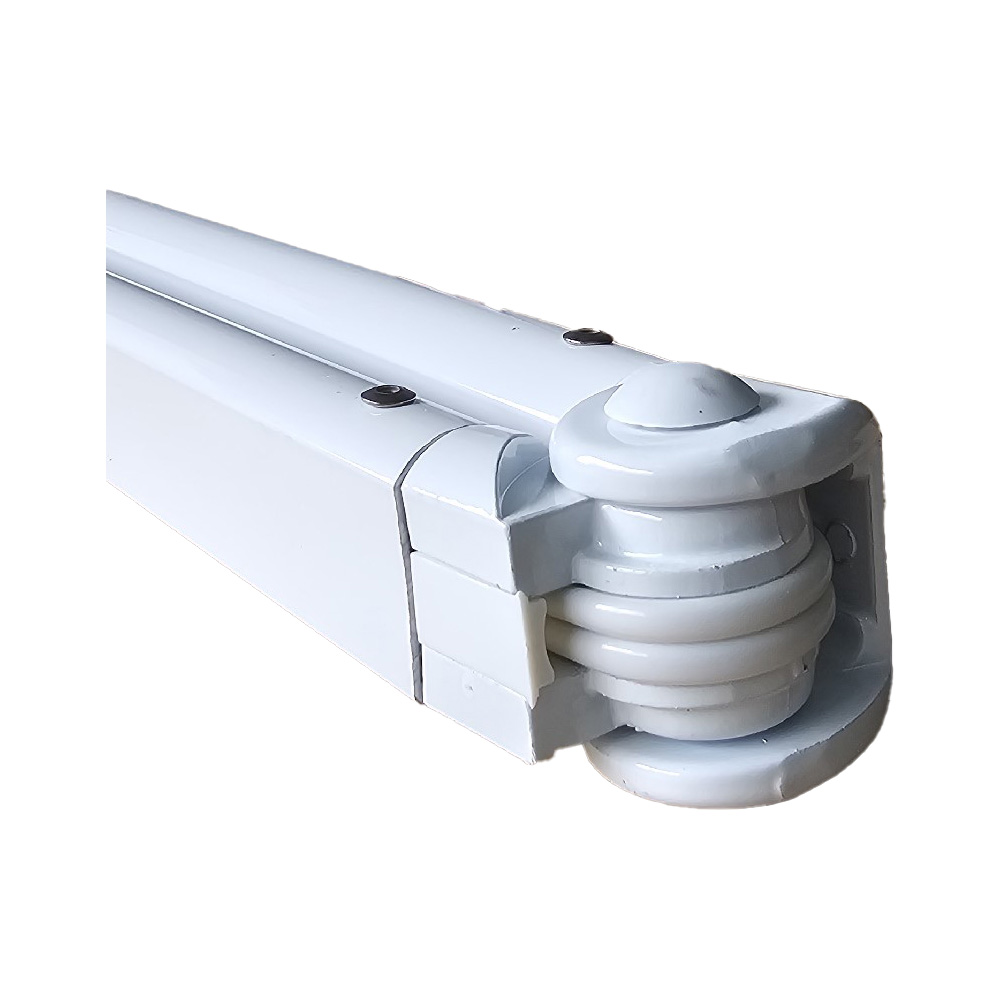

Cable Arm

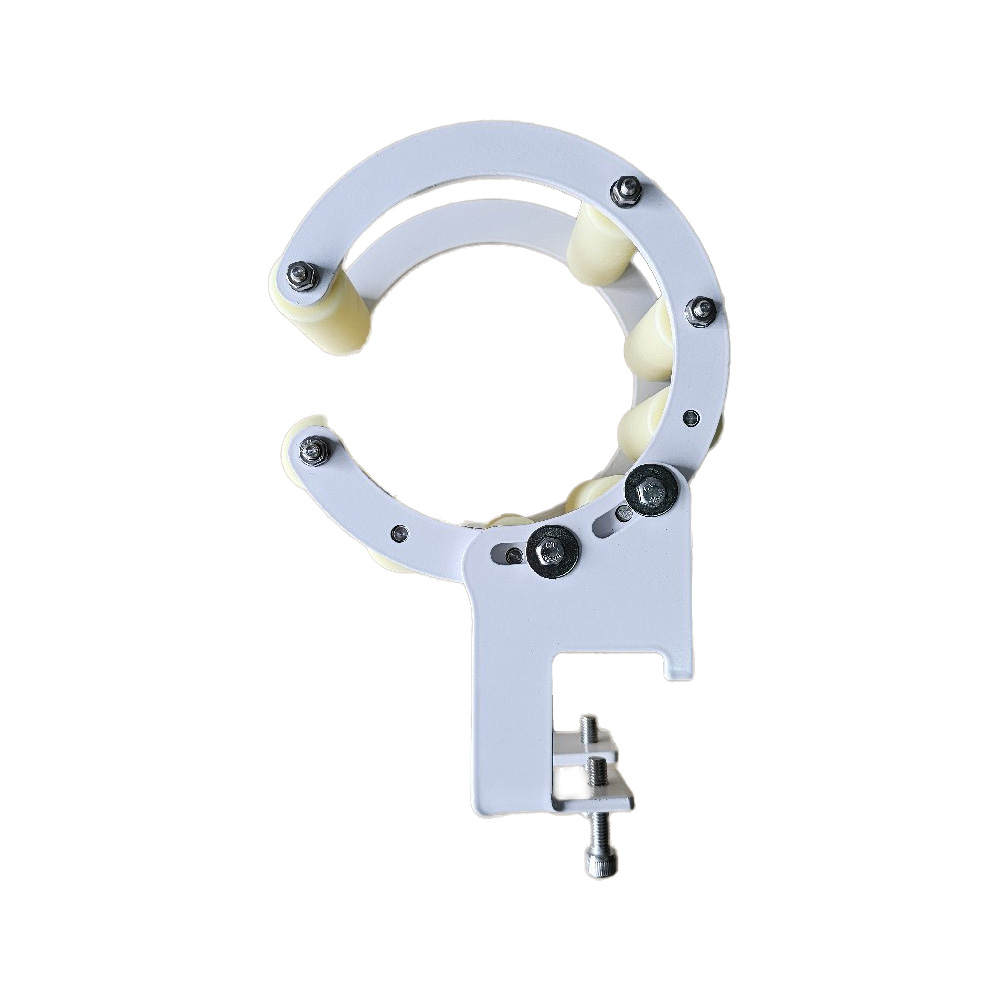

Center Support Hight 2

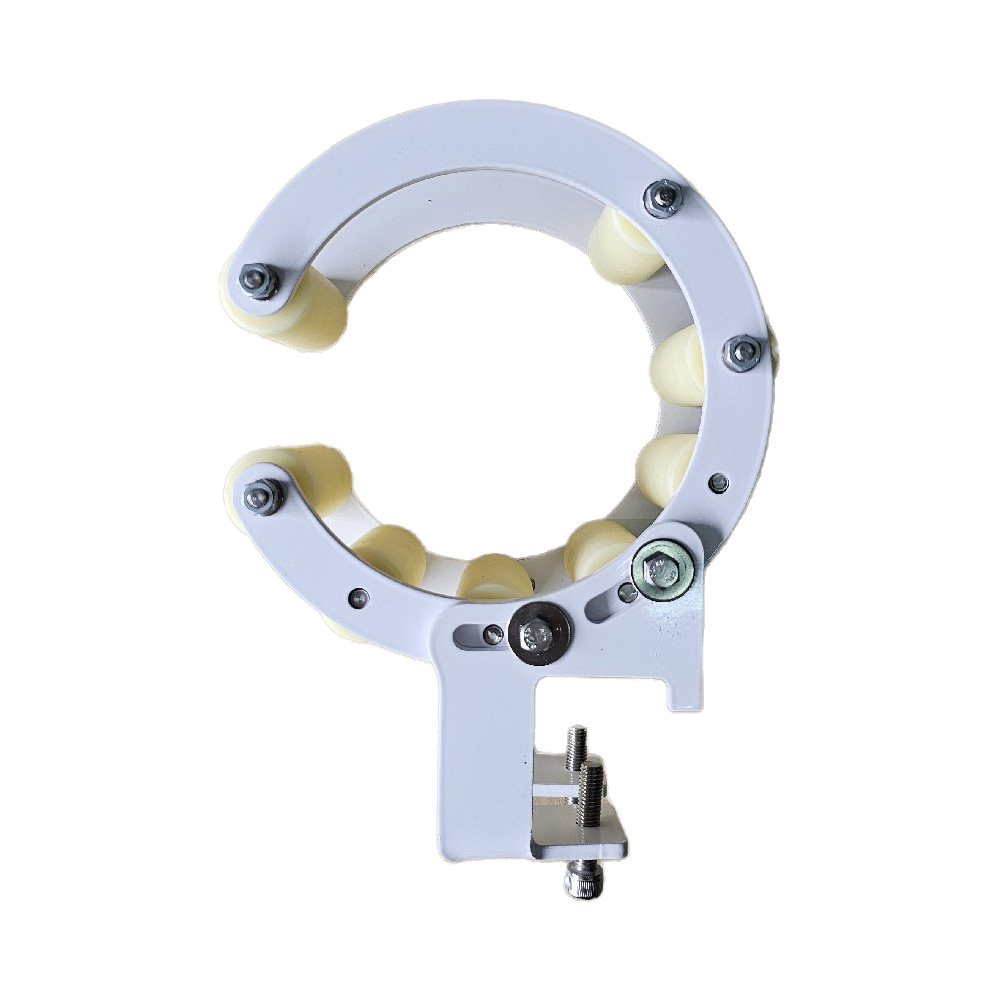

Center Support Low

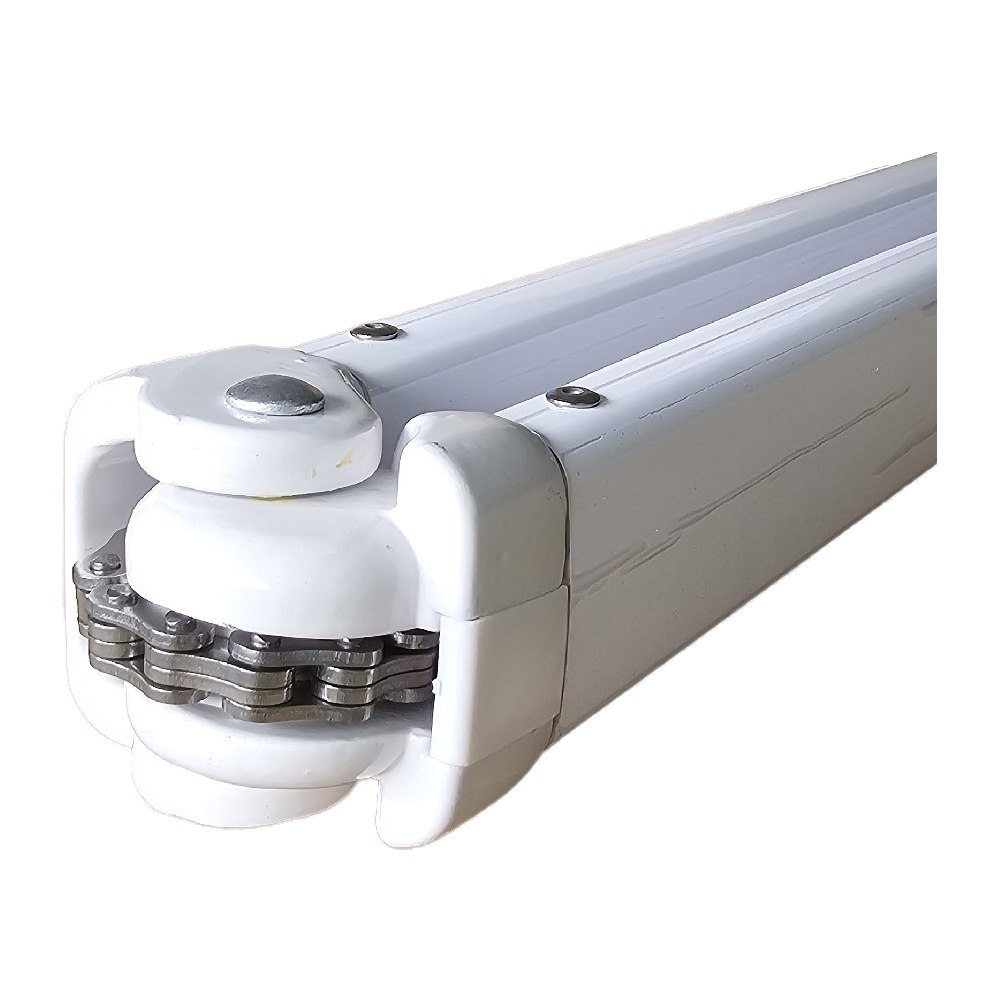

Chain Arm

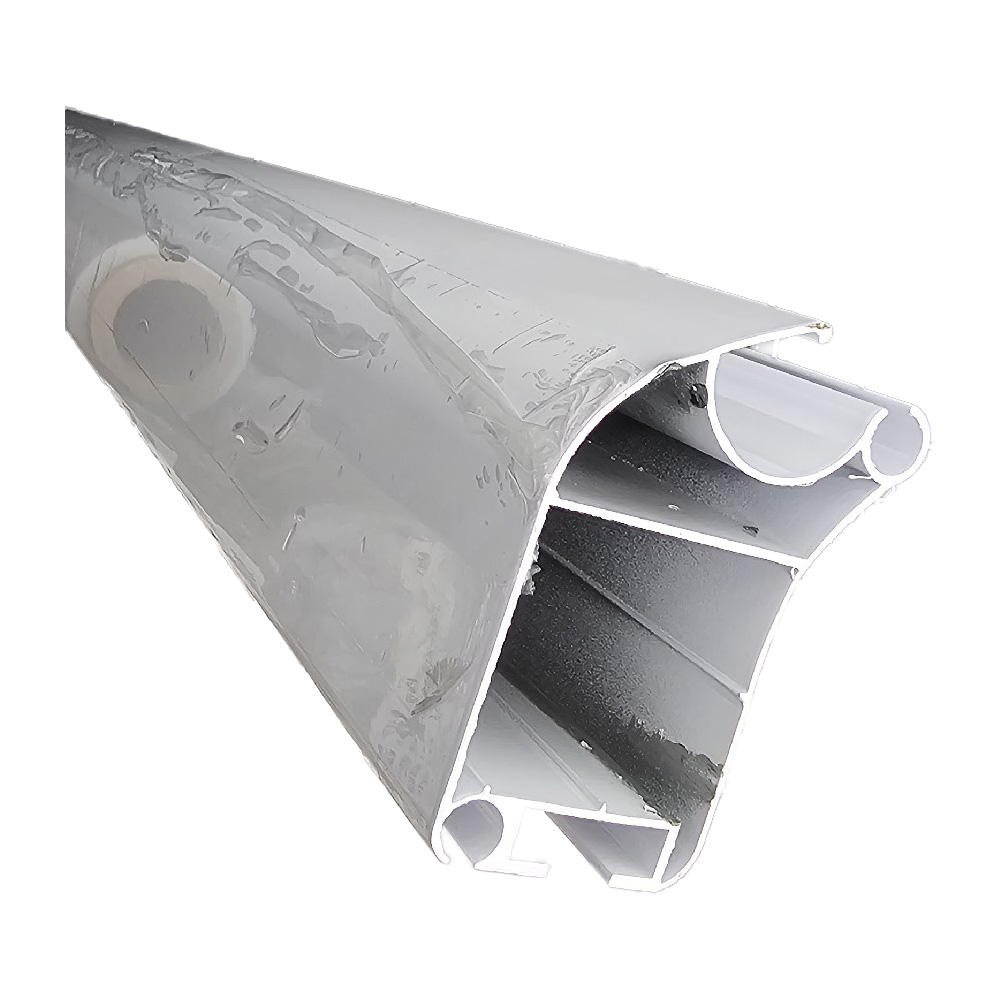

Front Bar (with gutter)

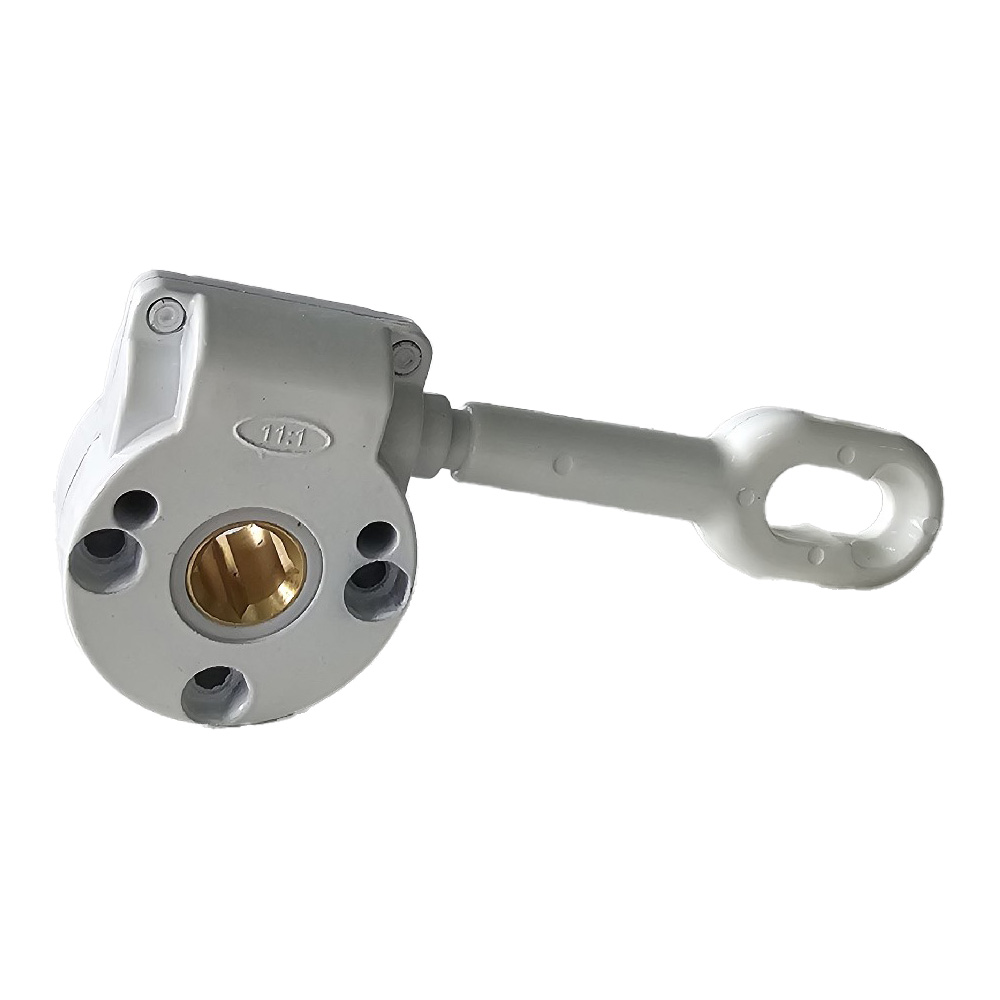

Gearbox 1 ratio 11

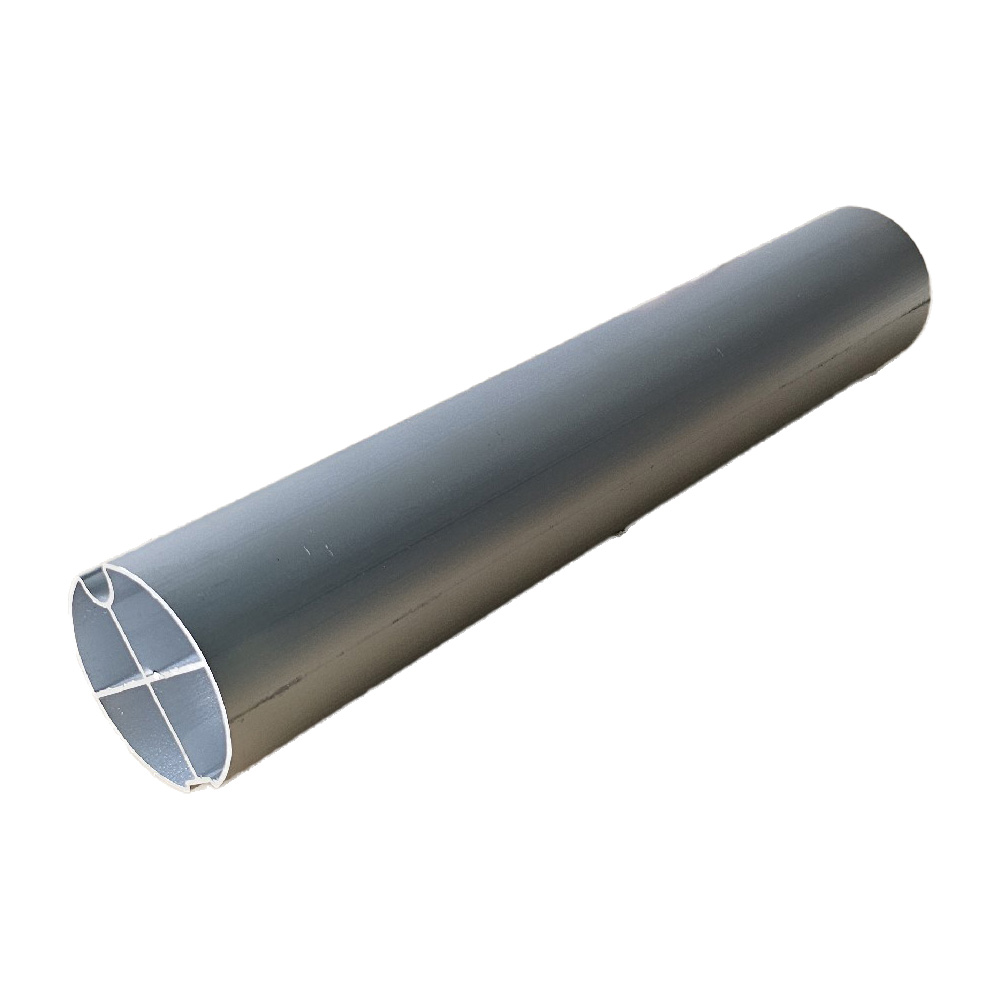

Roller Joint 2 (Upgraded)
Roller Tube 78mm 3.0mm Alu

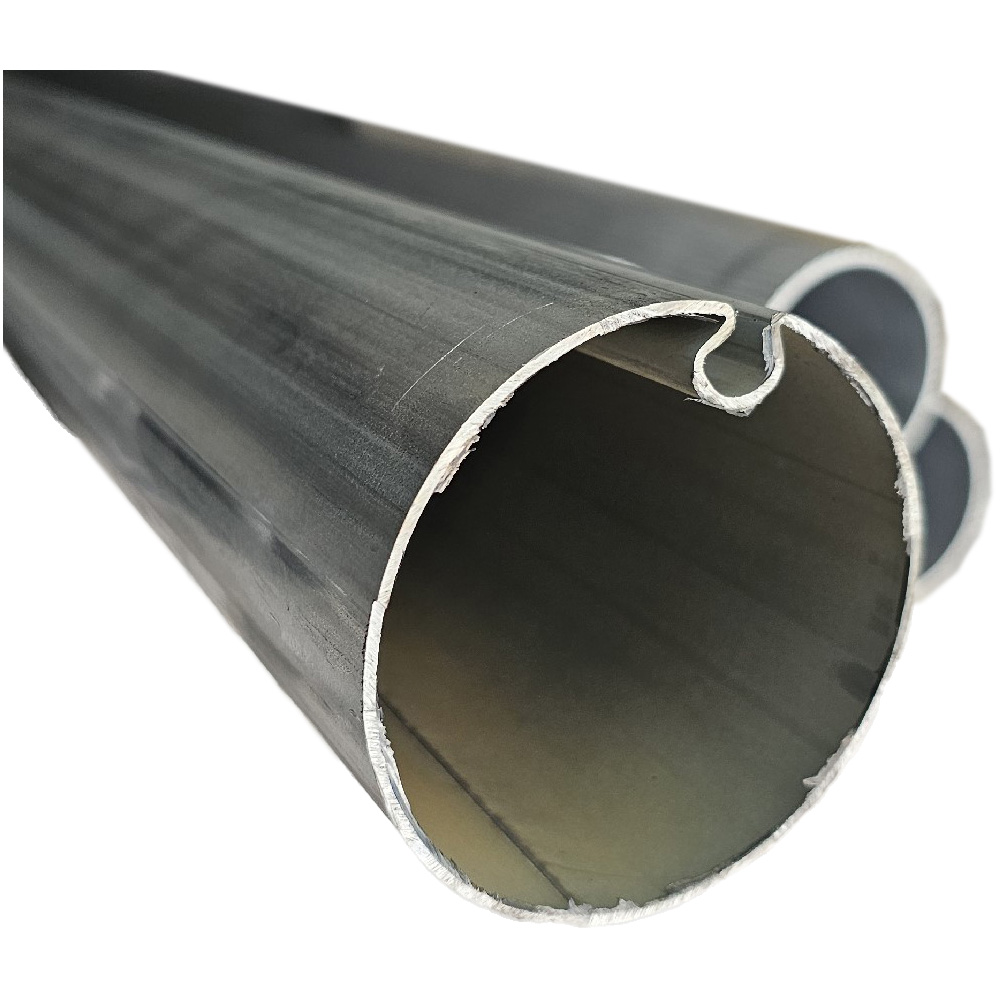

Roller Tube 78mm G.I. 1.2mm

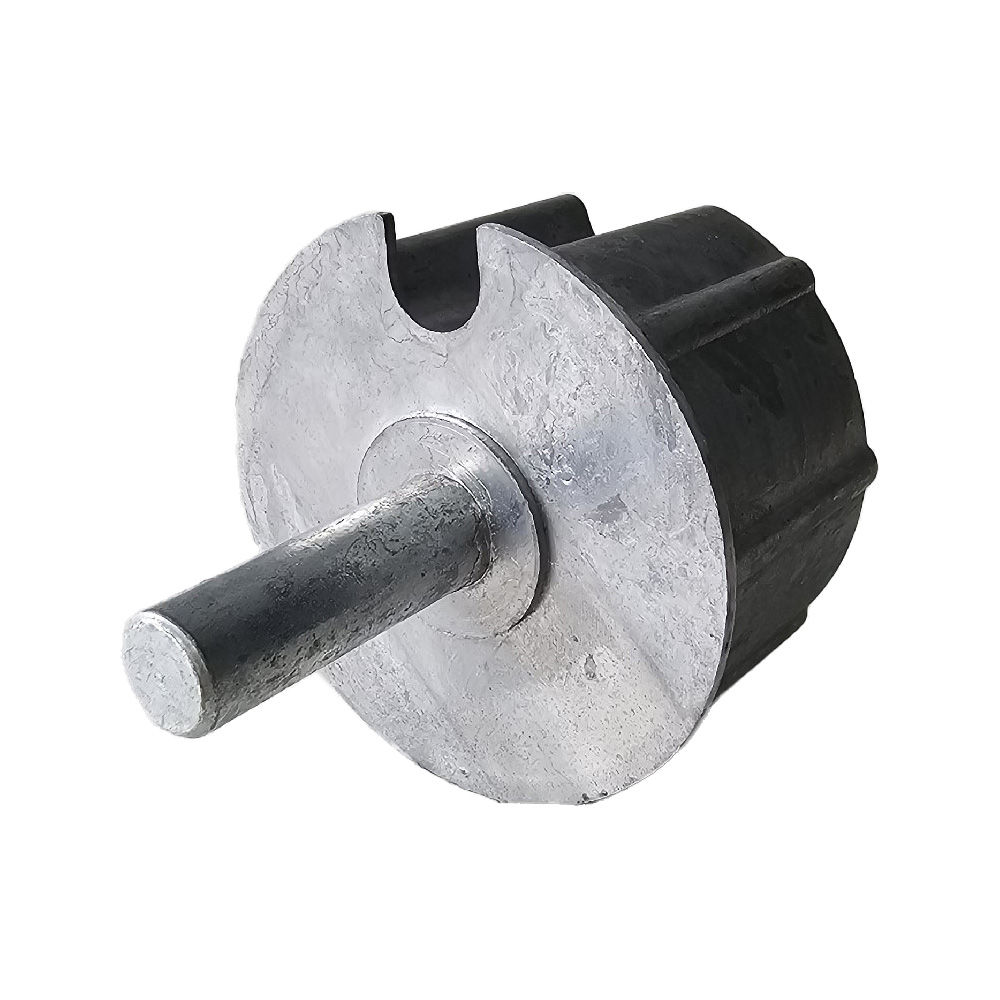

Round Box Alu

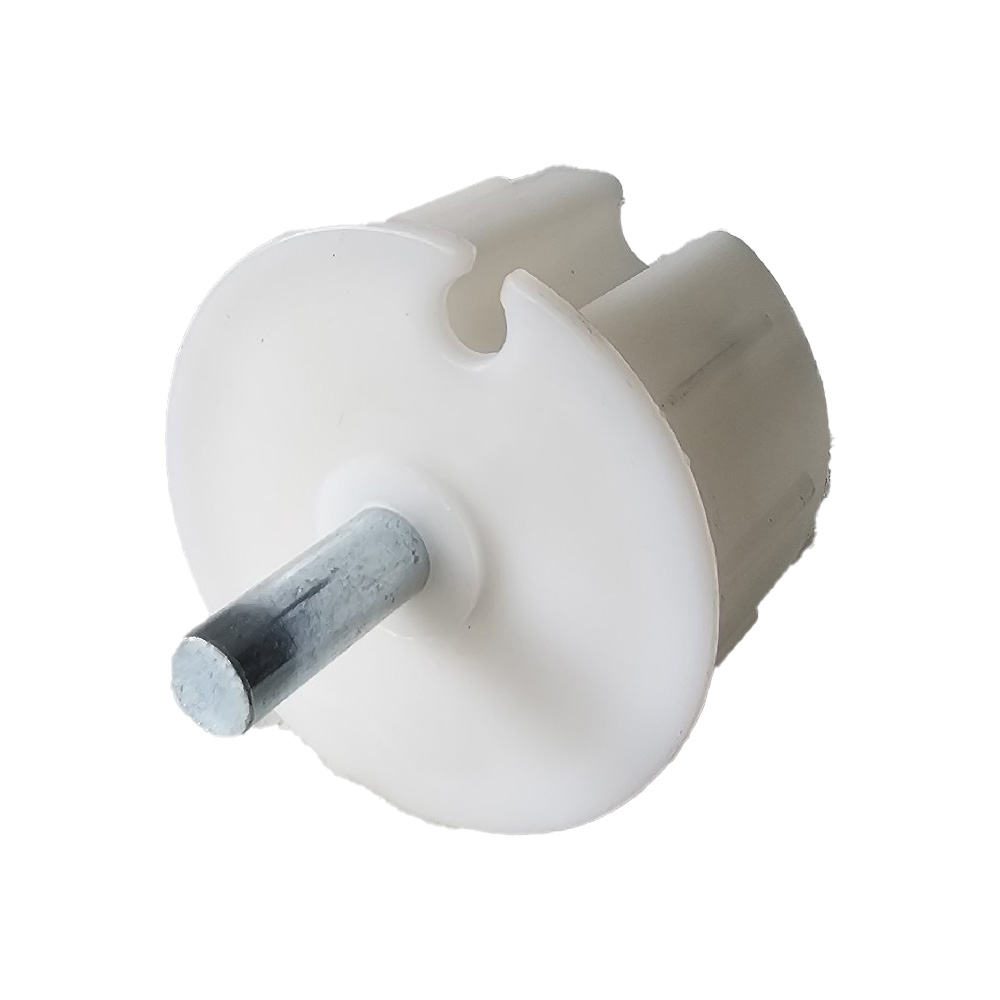

Round Box PP

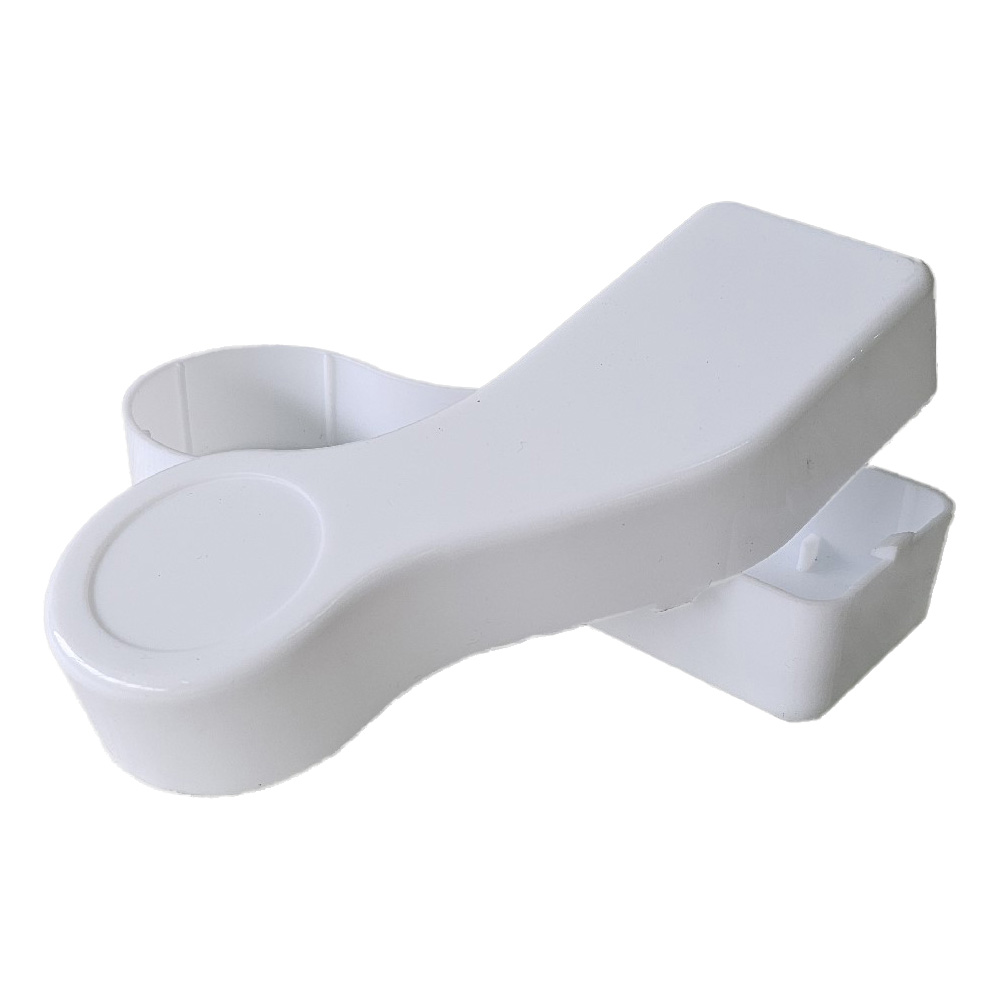

Side Bracket Endcap

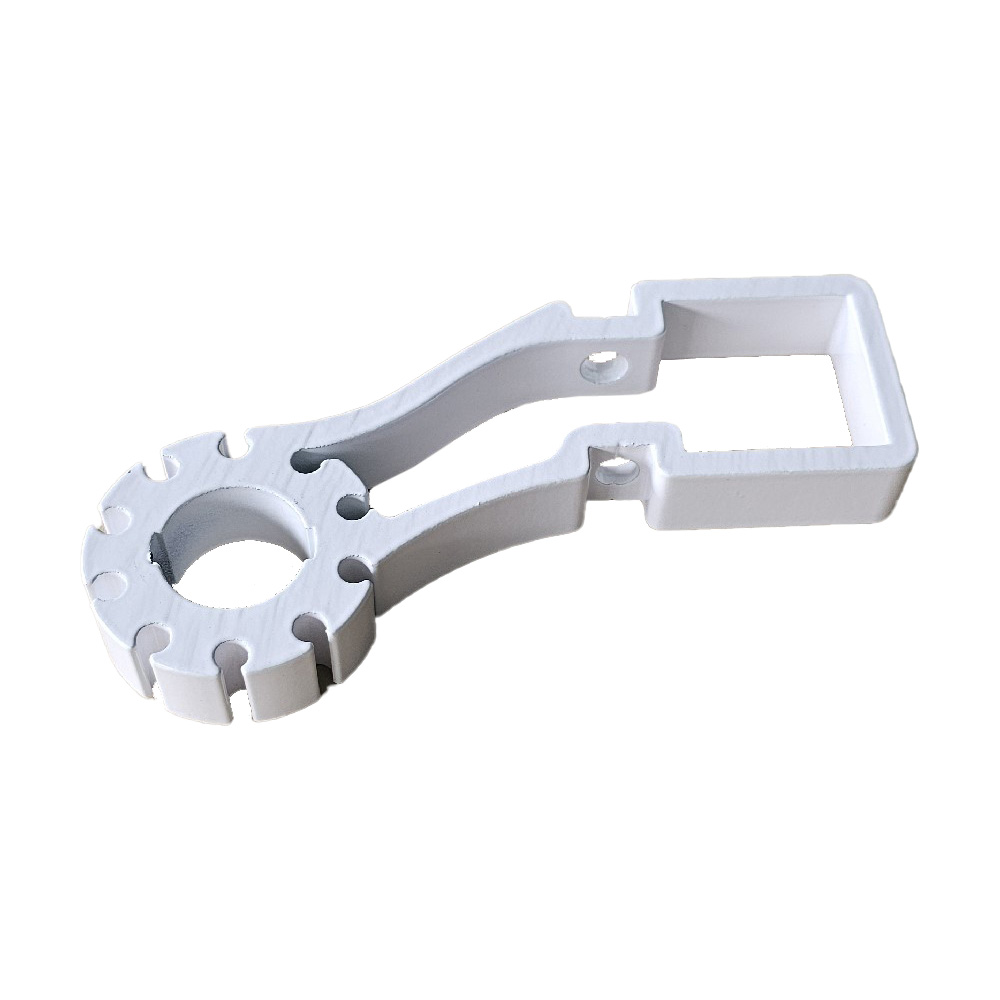

Side Bracket SD

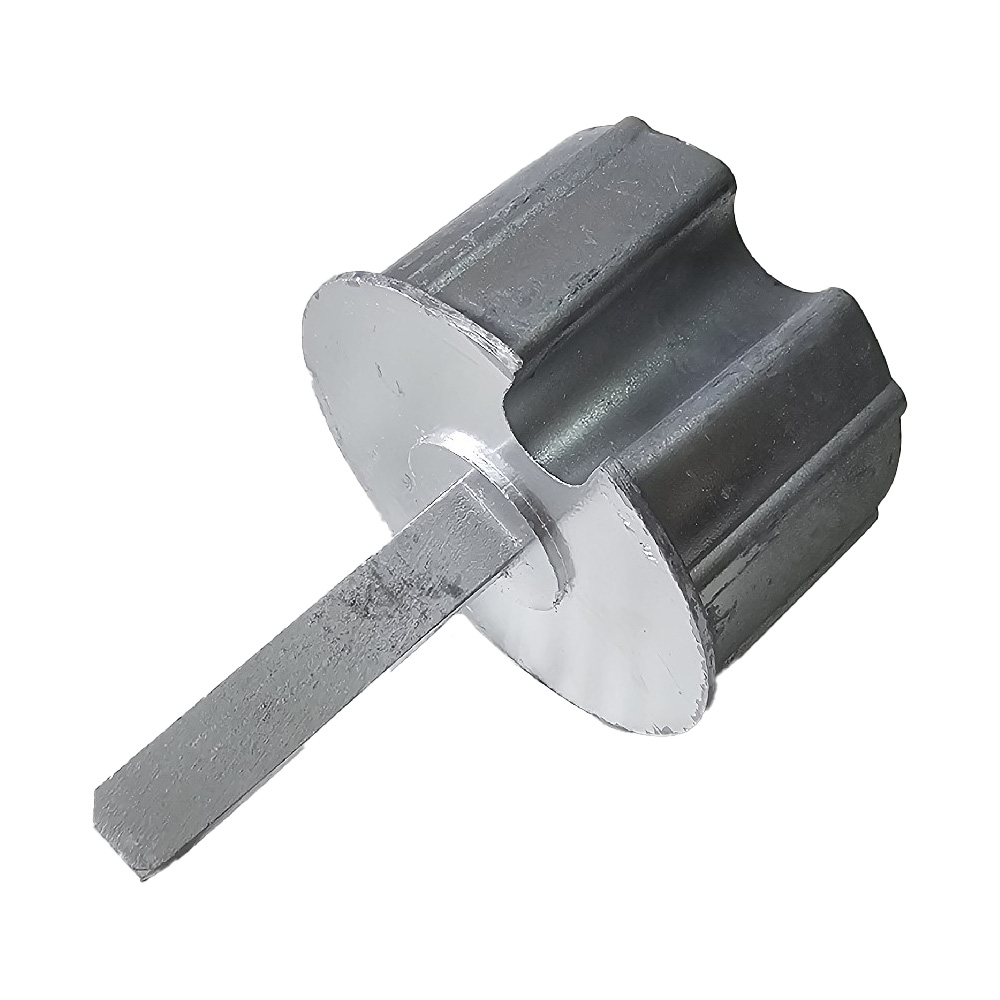

Square Box Alu

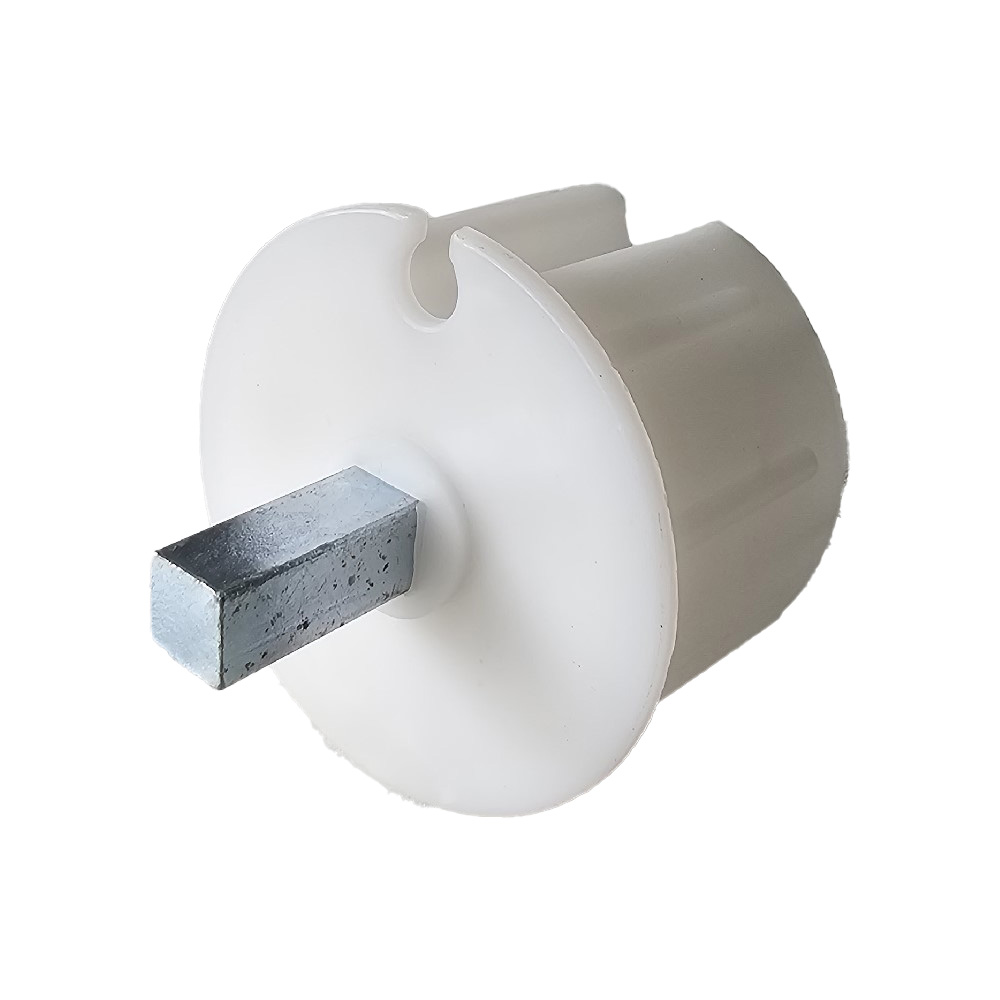

Square Box PP

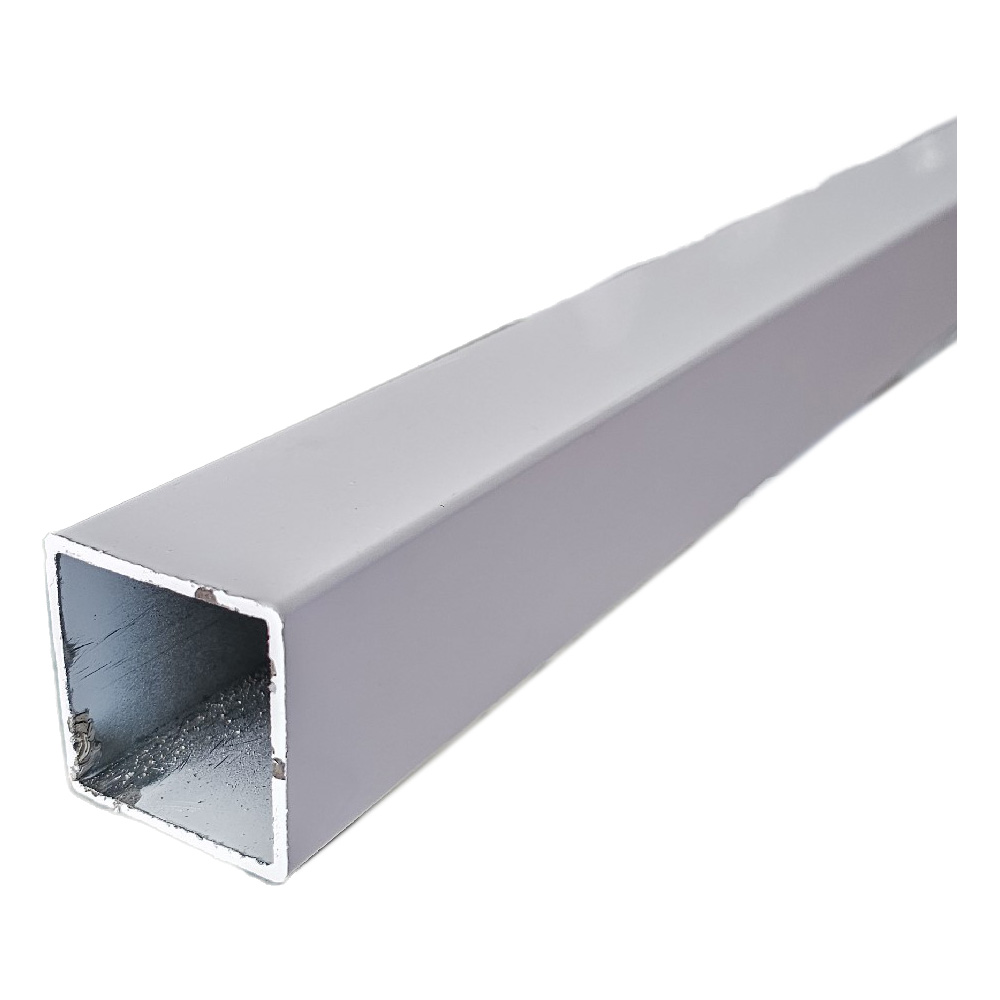

Square Tube 40x40mm

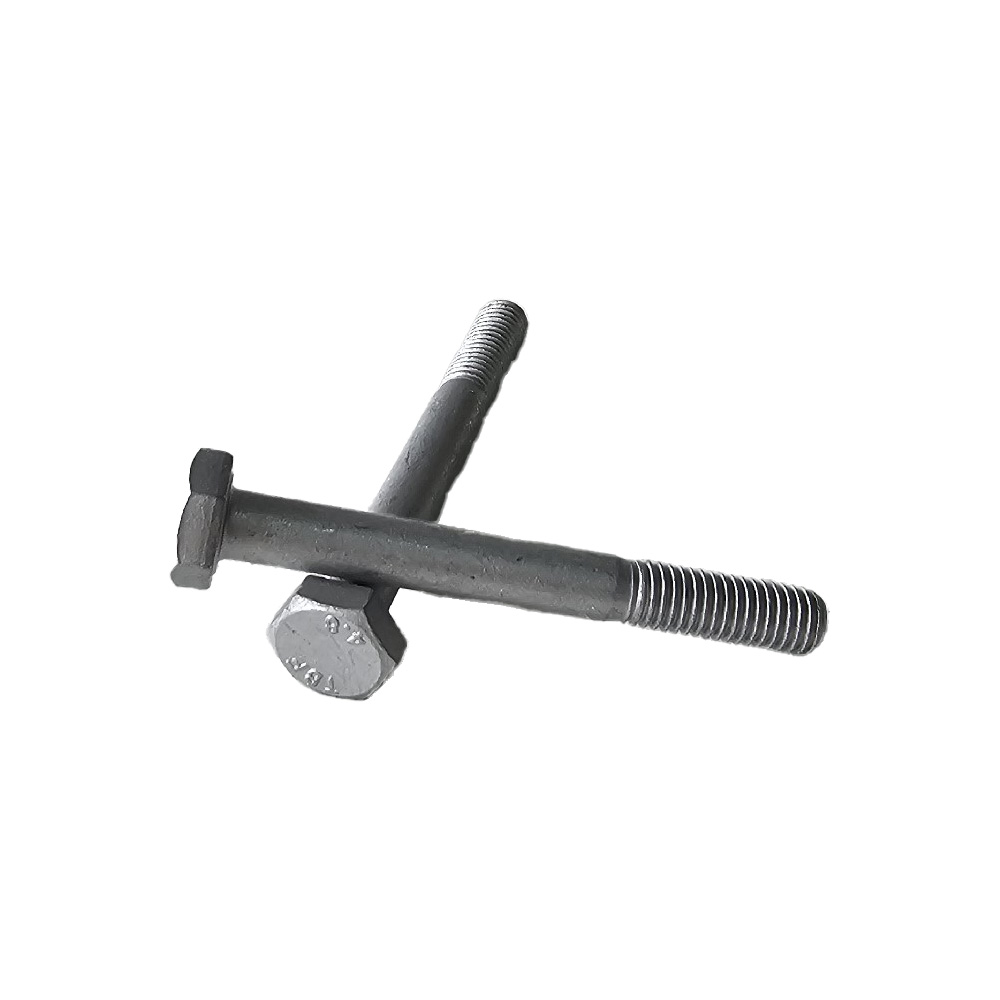

Wall Bracket Screw

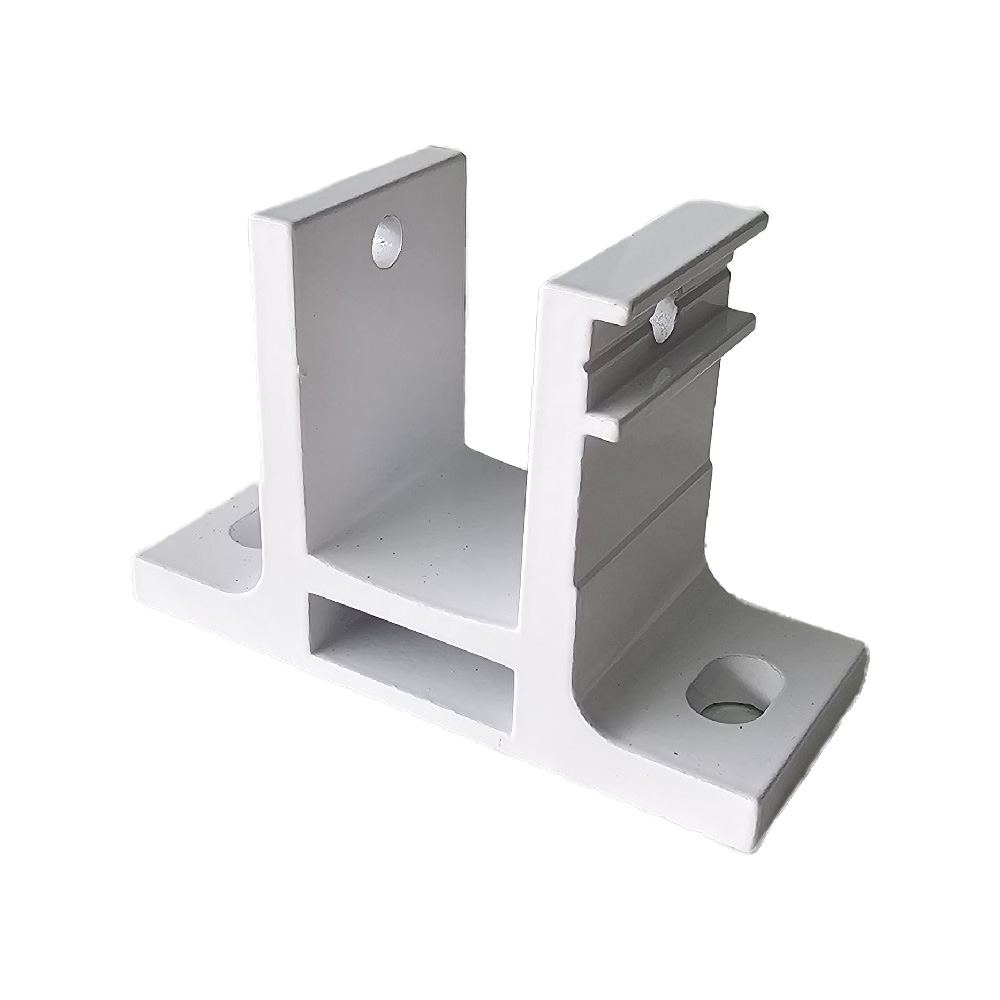

Wall Bracket

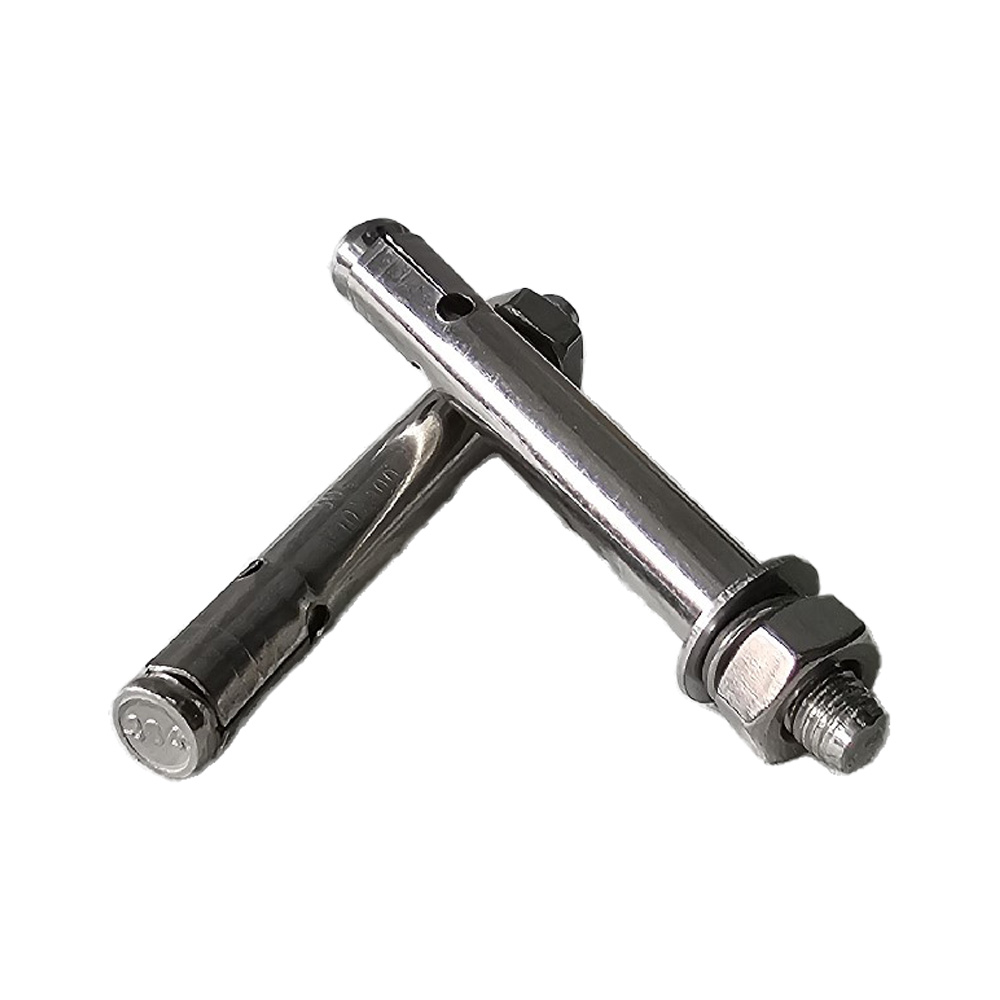

Wall Plug SS

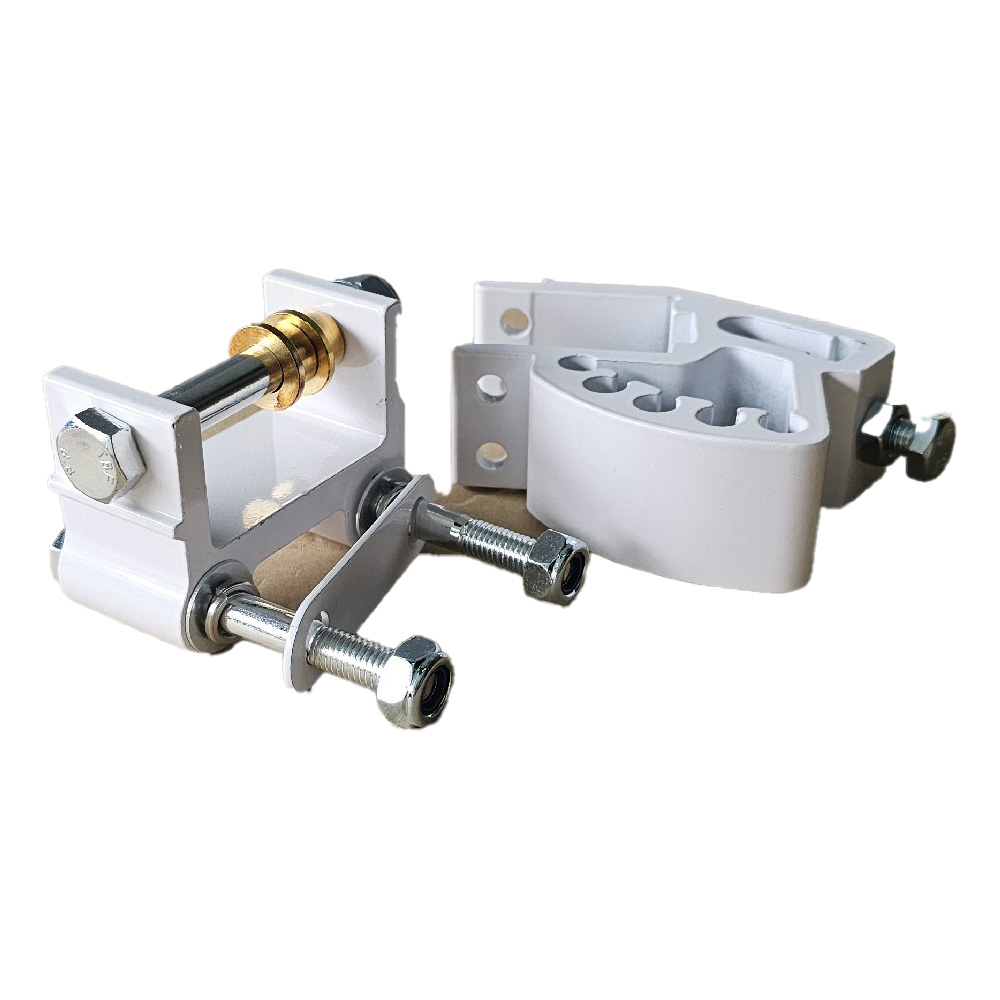

Arm Bracket 2

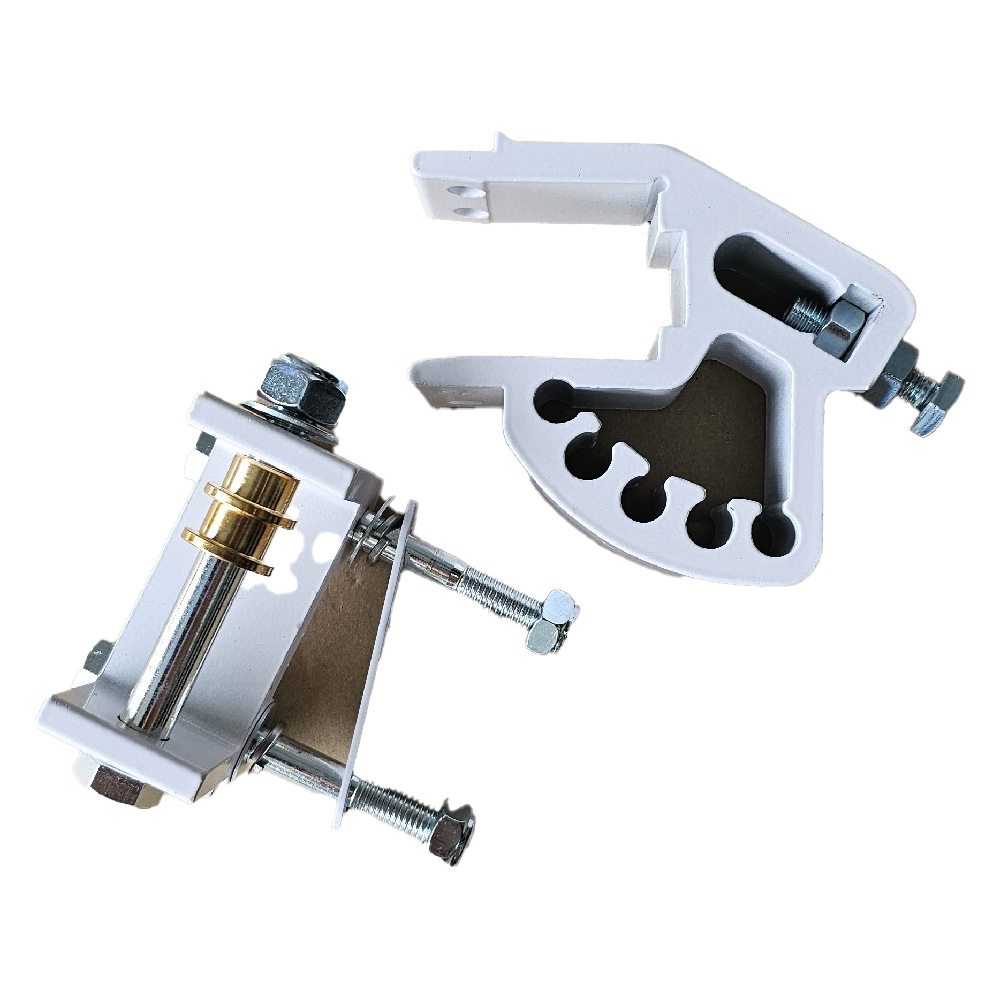

Arm Bracket

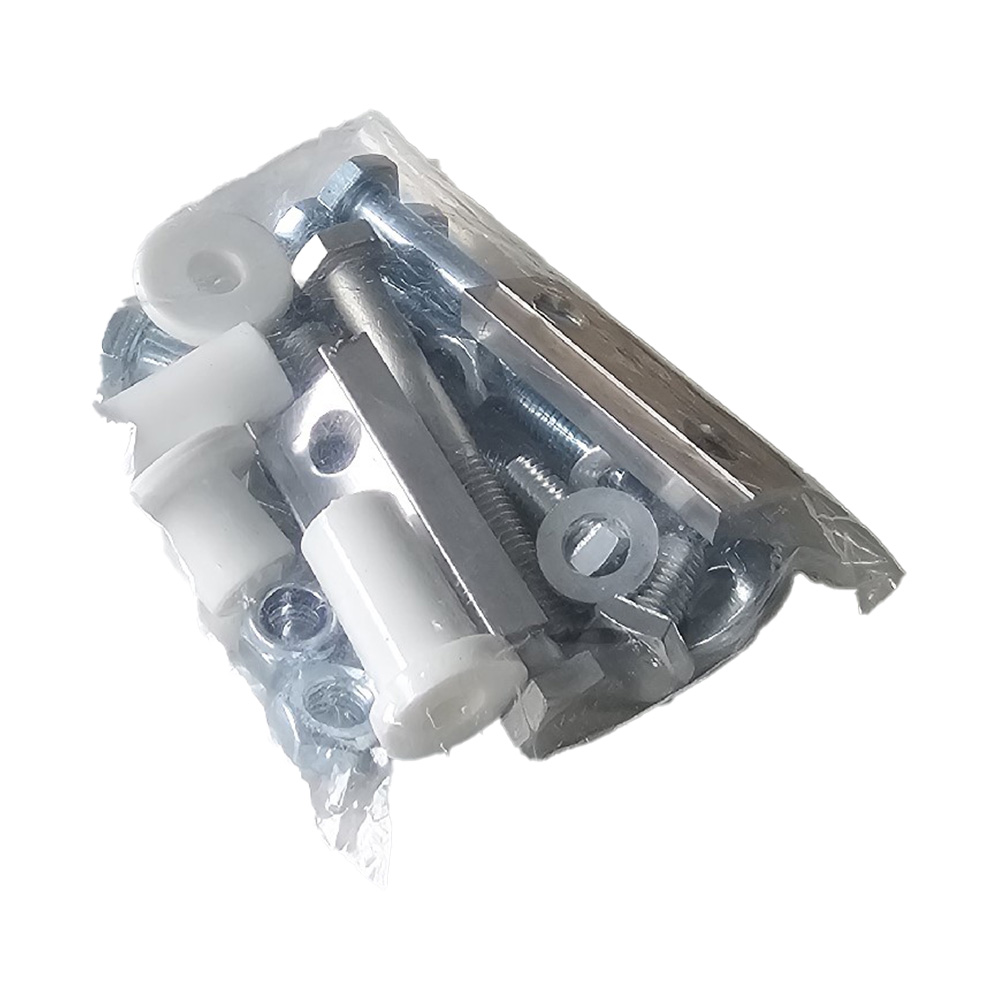

Arm Finger Screw Bag

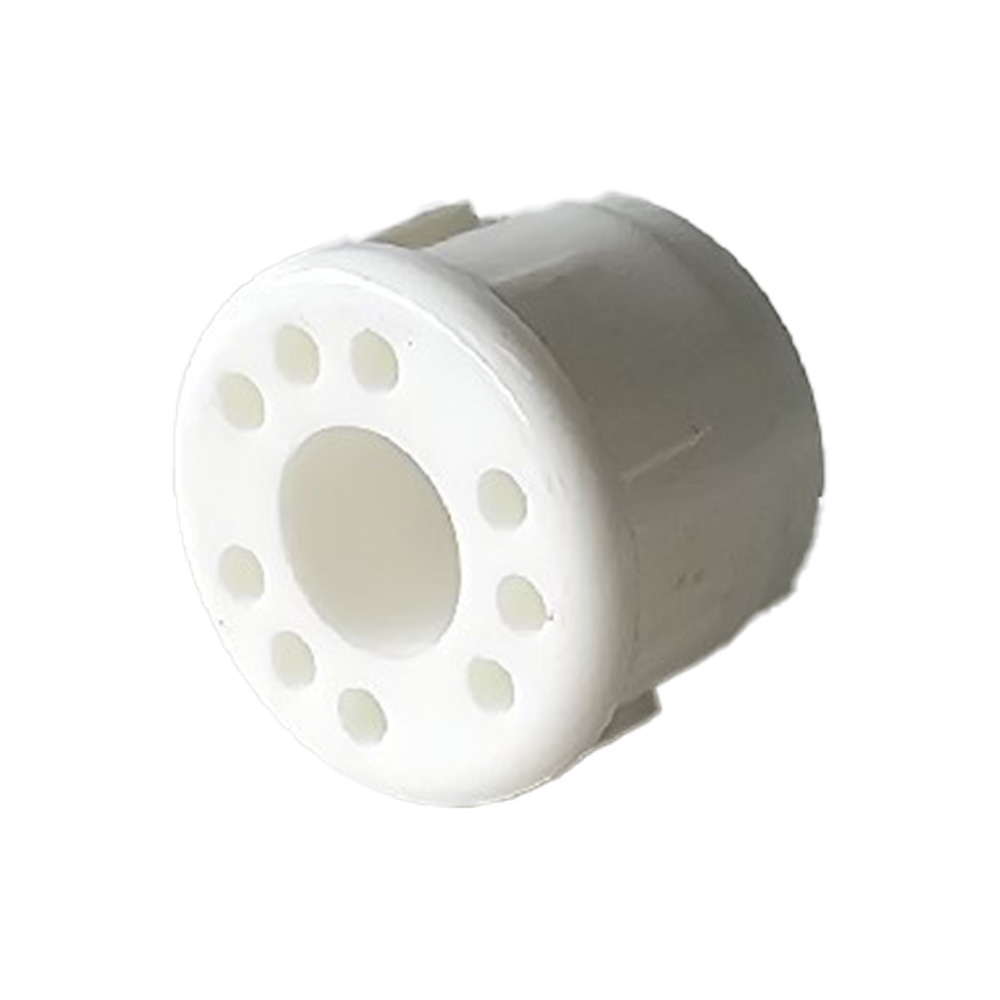

Axle Sleeve

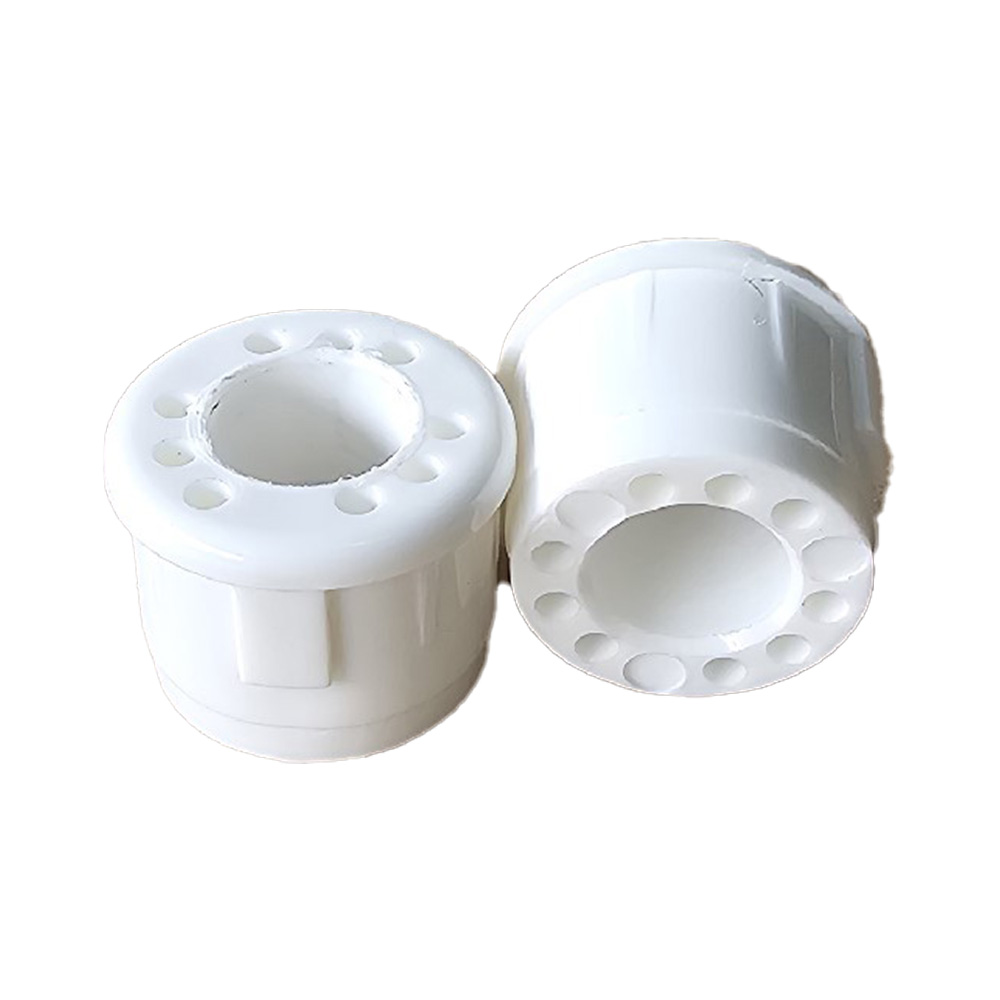

Axle Sleeve 2
Accessories

YD

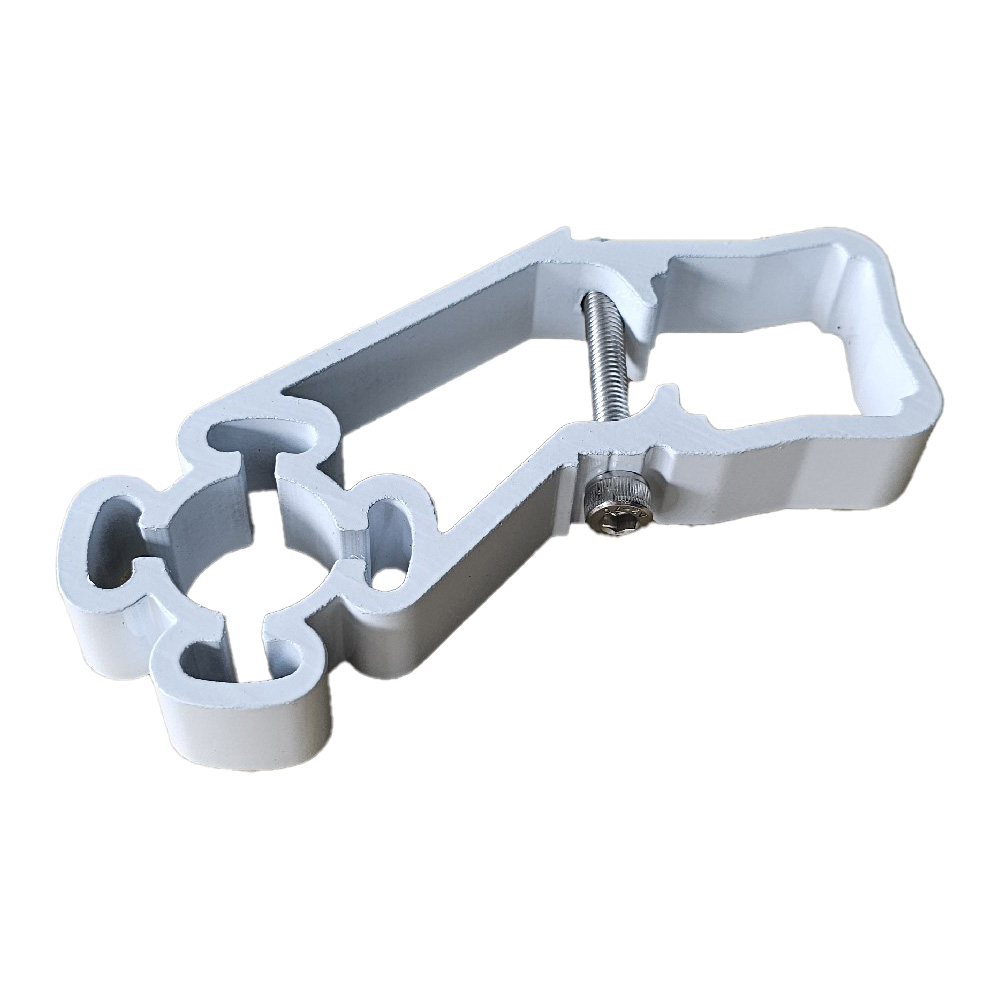

Side Bracket YD (dual Angle)

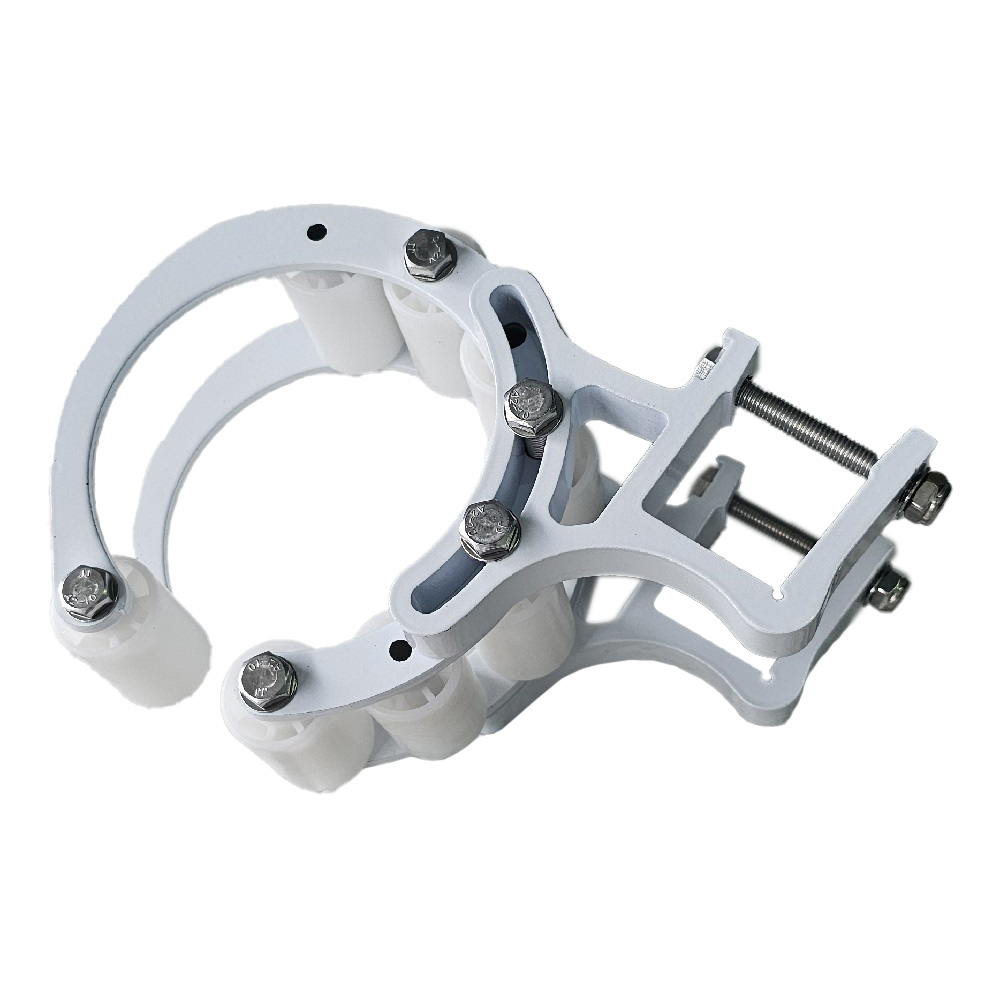

Center Support High YD

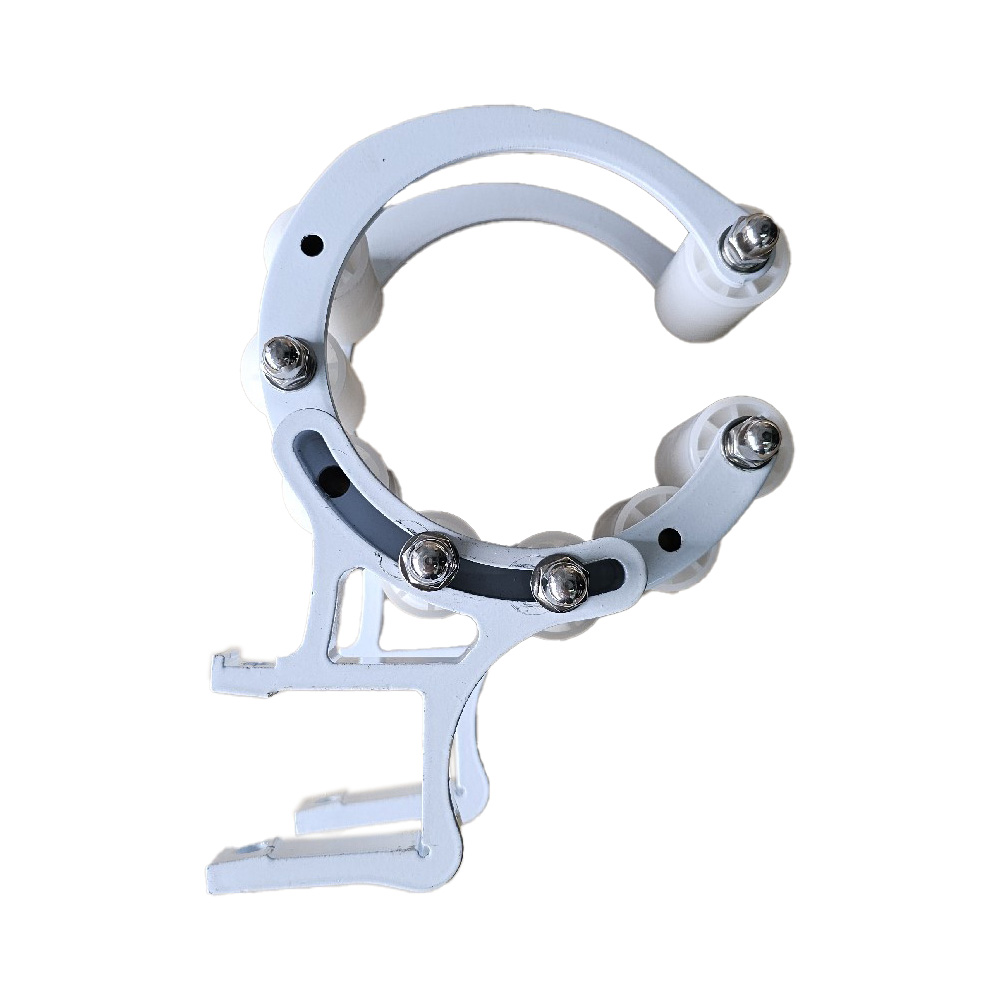

Center Support Hight 3 YD

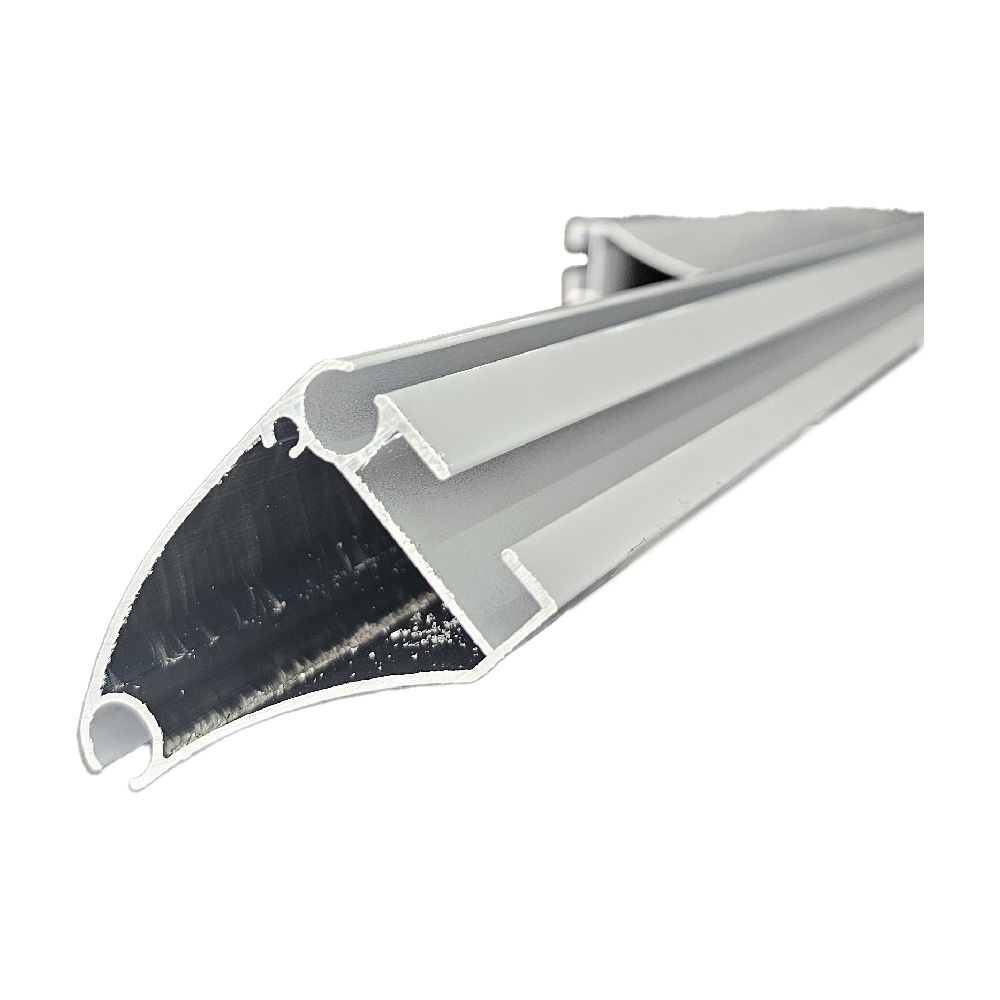

Front Bar

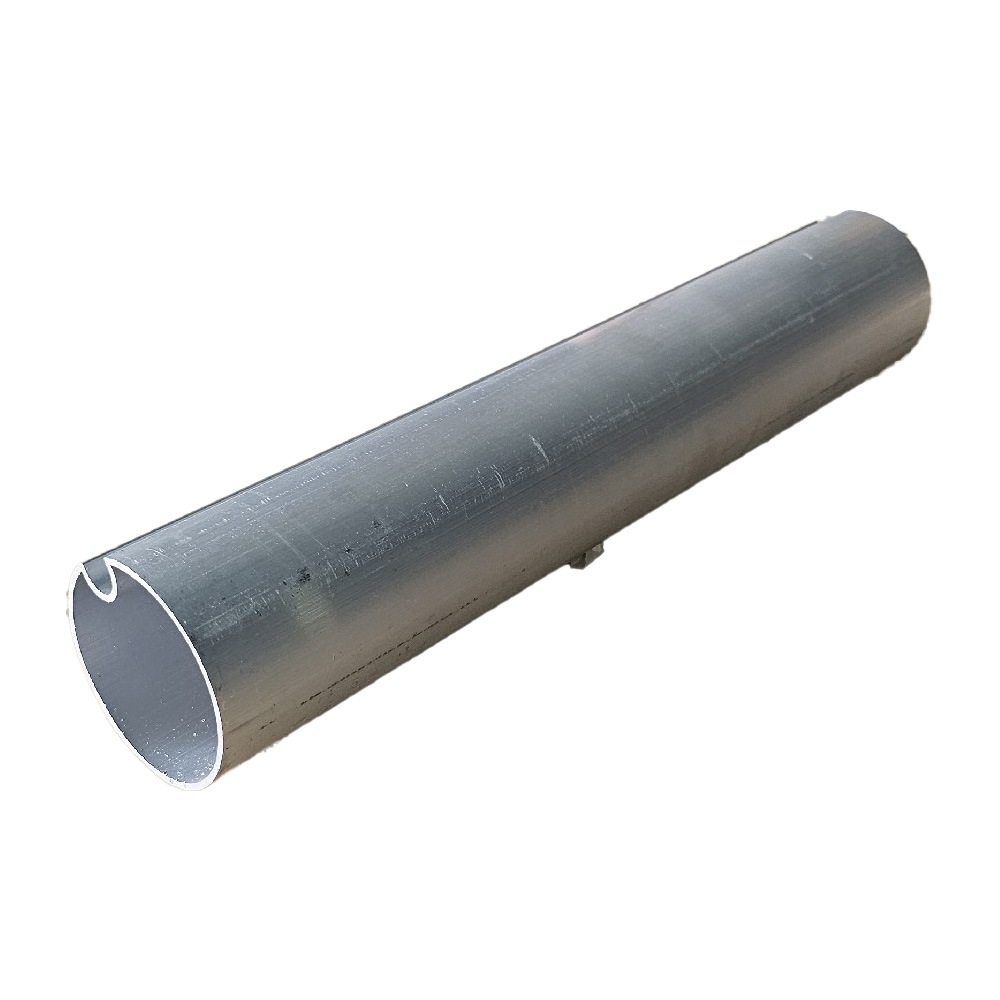

Roller Joint 1

Technical Specifications

TAILOR made


Width : 2 meter - 30 meter
Extension : 1.5 meter - 4 meter

Available

Non-Available

Special Arrangment

Arm Extension
 Width
2 2.5 3 3.5 4 4.5 5.5 Above 6
1.5 ○ ○ ○ ○ ○ ○ ○ ●
2 ○ ○ ○ ○ ○ ○ ○ ●
2.5 ○ ○ ○ ○ ○ ○ ○ ●
3 ○ ○ ○ ○ ○ ○ ○ ●
3.5 ○ ○ ○ ○ ○ ○ ○ ●
4 ○ ○ ○ ○ ○ ○ ○ ●
Above 4 ○ ○ ○ ○ ○ ○ ○ ●

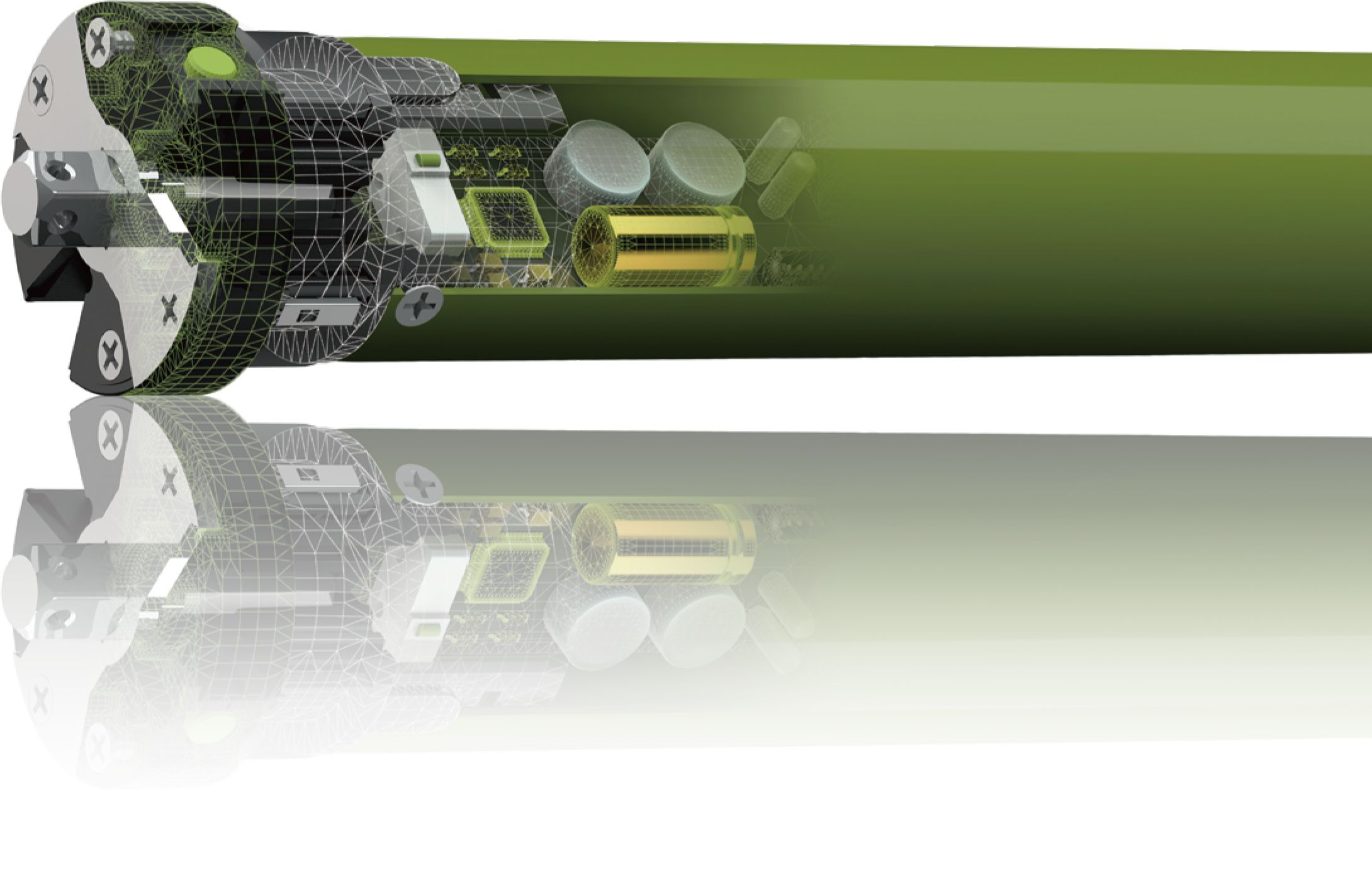

TUBULAR Motor


Torque from 50N.m to 120N.m, wide range of features tailored to your specific needs.

Specification DM45S DM45R DM59S DM59S
Rated Torque (N.m) 50 50 120 120
Rated Speed (rpm) 12 12 9 9
Rated Power (Watt) 205 205 350 350
Rated Current (Amp) 0.89 0.89 1.56 1.56
Continuos Running Time (Min) 4 4 4 4
Degree of Protection (IP) IP44 IP44 IP44 IP44
Tube Diameter (mm) 45 45 59 59
Tube Length (mm) 537 637 599 768
Remote Control NO YES NO YES
Number of cable 4 3 4 3

100% solution-dyed acrylic fabrics for awnings, marine and decoration.

Recacril® fabrics are designed for outdoor use, providing excellent UV protection and durability. As a result of our exclusive Infinity Process, They are water, dirt and mold repellent. They guarantee a high degree of resistance to the elements, superior comfort and are easy to clean and maintain.

Superior protection from UV rays
Its special construction, together with the quality of its fibers, allows it to block up to 90% of the sun’s harmful rays, reducing heat and glare. Our fabrics rigorously comply with UV Standard 801, an analysis method thatdetermins the Ultraviolet Protection Factor.
High resistance over time
The technical properties of Recacril® fabrics allow the useful life of products that use these fabrics to be extended. In this way, we reduce the need to replace them, which translates into less consumption and waste. Reduce, recycle and reuse; the basis of any eco-friendly product.
Easy cleaning and maintenance
Recacril® fabrics are very easy to maintain, thanks to their anti-stain treatment, which prevents stains from penetrating the fabric. Most of the dirt can be removed with the help of a soft brush. In addition, bleach can be used without affecting the color.
Thermal comfort and energy saving
The entire range of Recacril® sun protection abrics is designed to achieve thermal comfort and maximum energy efficiency in any given space. Therefore, the consumption of air conditioning and heating is reduced, saving energy and money.

Fabric Colour Chart
